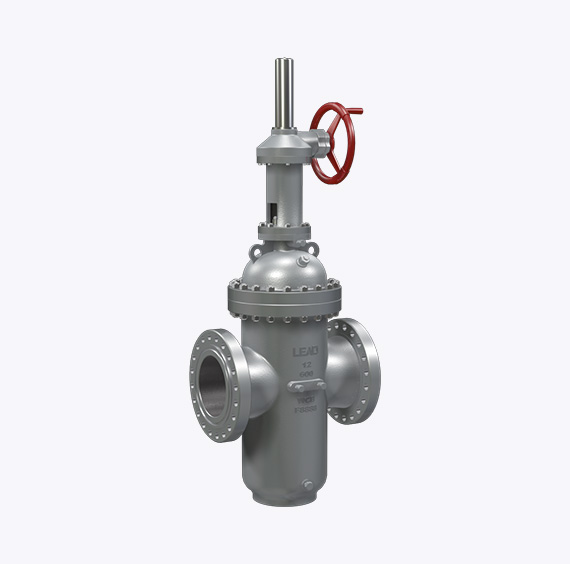

The Flat Gate Valve is a type of valve that is primarily used for on/off service in various industrial applications. This valve features a flat gate design, which allows for a smooth flow path when fully opened, minimizing turbulence and pressure loss. The flat gate valve is known for its simple design, reliability, and ease of operation, making it a popular choice in water supply, wastewater management, and other fluid control systems.
The two sealing faces of a flat vgate valve are perpendicular to the pipeline axis, its closing member is a single disc, valve equipped with a stretching mechanism.
From the aspect of structure style, the through conduit gate valve can be divided into two types of valves with diversion holes and valves without any diversion hole.

---

Features:

• Efficient Flow Control: The flat gate design provides a straight-through flow path, reducing resistance and allowing for efficient fluid movement.
• Simple Construction: With fewer moving parts than other valve types, the flat gate valve is easy to operate and maintain.
• Robust and Durable: Typically constructed from high-strength materials such as cast iron, carbon steel, or stainless steel, these valves are designed to withstand harsh operating conditions.
• Versatile Applications: Suitable for a wide range of fluids, including water, oil, and gas, making them adaptable for various industries.
• Low Maintenance: The design minimizes wear and tear, leading to lower maintenance requirements and extended service life.

---

Standard:

• Body material: carbon steel, stainless steel,
• Nominal diameter: 2"～36"
• Pressure range:Class150～2500
• End connection: RF, RTJ, BW
• Working temperature:-46℃～+200℃
• Operation : handwheel, gear box, electric, pneumatic actuator, electro-hydraulic actuator , etc.
• Design standard as per: API 6D、ASME B16.34、GB/T 19672
• The valve disc and valve seat seal are repeatedly treated by special processes, and protected by multiple seals, and featured with anti-corrosion, penetration-proof, anti-abrasion and long service life;
• Valve seat is designed with hard-soft double seal, having reliable tightness;
• With a full bore design, both the coefficient of flow resistance and the pressure loss are very small;
• When the valve is fully opened, medium erosion occurring to its sealing face is smaller than that of other valves;
• The through conduit gate valve with diversion holes installed on a pipeline can also be cleaned by a pipe cleaner directly;
• For adjustment structure, the valve have a good flow adjusting ability;
• No space restriction on valve installation, that is, both parallel and perpendicular installations are allowed.
