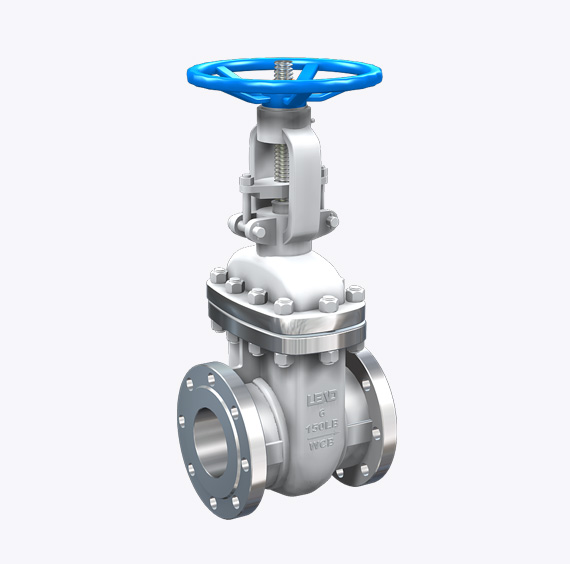

The Cast Steel Gate Valve is a robust and reliable valve designed for on/off service in various industrial applications. Made from high-quality cast steel, this valve is engineered to provide excellent strength, durability, and resistance to high pressures and temperatures. The gate valve design allows for minimal flow resistance when fully open, making it ideal for applications where a straight-line flow is essential.
gate valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening.

---

Features:

• Durable Construction: Constructed from high-grade cast steel, these valves are designed to withstand harsh operating conditions, including high pressure and temperature environments.
• Minimal Flow Resistance: The gate design provides a full-bore opening, allowing for unobstructed flow and reduced pressure drop when the valve is fully opened.
• Versatile Applications: Suitable for a wide range of fluids, including water, steam, oil, and gas, making them ideal for various industries such as oil and gas, power generation, and chemical processing.
• Reliable Sealing: The gate valve features a solid sealing mechanism that ensures a tight closure, preventing leakage and ensuring system integrity.
• Ease of Operation: Available in manual, electric, or pneumatic actuation, cast steel gate valves can be easily integrated into automated systems for efficient operation.

---

Standard:

• API 600: Bolted Bonnet Steel Gate Valve for Petroleum and Natural Gas Industries
• BS 1414: Specification for Steel Wedge Gate Valves (Flanged and Butt-welding Ends) for the Petroleum, Petrochemical and Allied Industries
• DIN3352: Bolted Bonnet Steel Gate Valve for Petroleum and Natural Gas Industries
• Connection: ASME B16.34 Valves Flanged, Threaded and Welding Ends
• Flange: ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through 24
• ASME B16.47 Series A Large Diameter Steel Flanges: NPS 26 Through NPS 60 Metric/Inch Standard
• Butt Weld: ASME B16.25 Buttwelding Ends
• Face to face: ASME B16.10 Face to Face and End to End Dimensions of Valves
• MSS SP-25 Standard Marking System for Valves, Fittings, Flanges and Unions
• BB, OS&Y: Bolt Bonnet, Outside screw and Yoke
• Size Range: 2" - 40"
• Pressure rating: ANSI Class150LB- 2500LB
• Carbon Steel:  ASTM A105, ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5,ASTM A217 C12, ASTM A217 C12A
• Stainless Steel:  ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CM8,  ASTM A890 GR4A, ASTM A890 GR6A
• Operation: Handwheel, Gearbox, Electric actuator, Pneumatic actuator, hydraulica actuator
• Test: API598,API6D
• cast steel gate valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of API-600 and ANSI B 16.34. Valves are available in a complete range of body/bonnet materials and trims.
