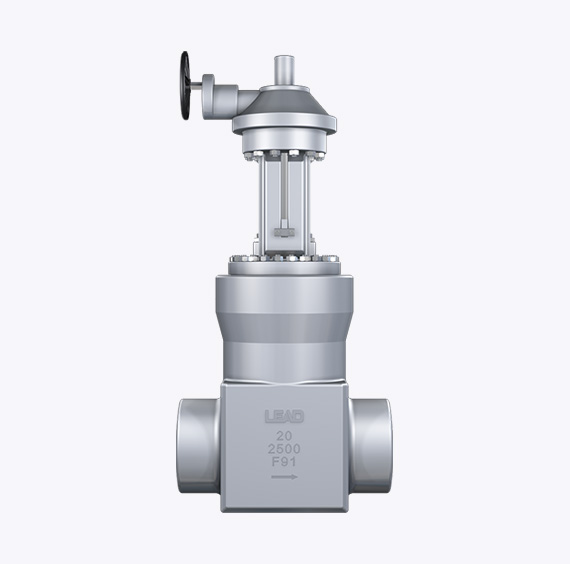

The Power Station Gate Valve is a type of valve used primarily in the power industry for controlling the flow of fluids. It utilizes a gate (or wedge) as the closing mechanism, which moves up and down to open or close the flow path. Power station gate valves are typically designed for high-pressure and high-temperature applications, offering excellent sealing performance and durability, making them suitable for various liquid and gas pipeline systems.

Features:

• Simple Structure: The design of the gate valve is straightforward, making it easy to operate and maintain.
• Low Fluid Resistance: When fully open, the valve allows fluid to flow with minimal resistance, effectively reducing energy consumption.
• Excellent Sealing Performance: High-quality sealing surfaces ensure that the valve does not leak when closed.
• High-Temperature and High-Pressure Resistant: Suitable for the demanding conditions found in power stations, capable of withstanding rigorous operational environments.
• Long Service Life: The use of wear-resistant materials extends the lifespan of the valve.

Standard:

• Standards to API 600, API 602, ASME B16.34 or DIN3202
• P.T Ratings to ASME B16.34
• Face to Face dimensions to ASME B16.10
• Flanged Ends to ASME B16.5, ASME B16.47 Series A or B
• Butt-weld Ends to ASME B16.25
• Threaded Ends to ASME B1.20.1
• Socket-weld Ends to ASME B16.11
• Valves Marking to MSS SP-25
• Inspect & Tested to API 598
• Size  Ranges from 1/2” thru 24”
• Pressure Ratings from Class 600 to Class 2500, PN110 to PN420
• Structures in Pressure Sealed Union Cover
• Ends Connections in Flange, Threaded, Welded and Goove Ends
• Body Materials available in Cast or Forged Carbon Steel, Stainless Steel, Duplex Steel, Special Materials etc.
• Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
• Actuations can be equipped with Handwheel, Gear Device, Electric / Pneumatic or Hydraulic Actuators
• Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
