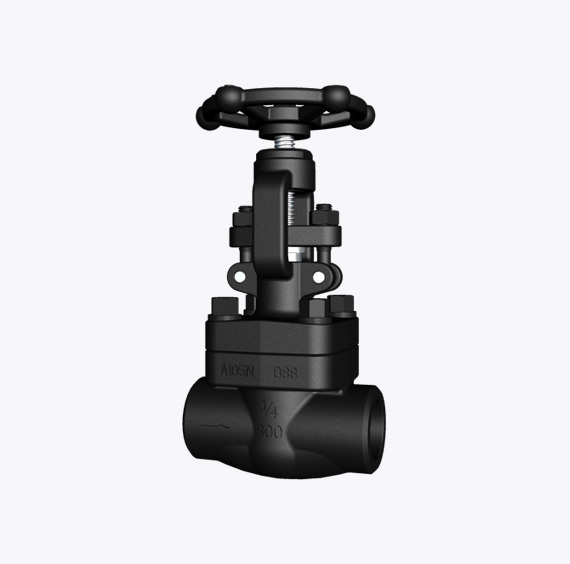

A forged steel globe valve is a type of valve used to control the flow of liquids and gases in a piping system. It is characterized by its spherical body shape and is designed for precise flow regulation. Typically made from high-quality forged steel materials, these valves are known for their strength, durability, and capability to withstand high pressures and temperatures.

---

Features:

• Durable Construction:Manufactured from high-strength forged steel, such as ASTM A105 or ASTM A182, providing enhanced durability and resistance to wear and corrosion.
• Effective Flow Regulation:The globe valve design features a movable disk that can be raised or lowered to control the flow, allowing for fine adjustments to fluid movement.
• High-Pressure and Temperature Capability:Suitable for high-pressure applications and capable of operating in extreme temperature environments, making them ideal for a wide range of applications in various industries.
• Variety of End Connections:Available in different end connection types, including flanged, threaded, and butt-weld, facilitating installation in various piping configurations.
• Compact Design:The design allows for a relatively compact installation footprint compared to some other valve types, making them suitable for space-constrained applications.
• Types of Globe Valves:Available in both rising stem and non-rising stem configurations, catering to different installation and operational needs.

---

Manufacturing Standards

Size：	NPS 1/2"~2"
Pressure Rating：	Class 150~1500
Material：	A105, LF2, F5, F9, F11, F22, F304, F304L, F311, F51
Design & Manufacturing Standard：	API 602, ASME B16.34, BS 5352
Face to Face：	ASME B16.5, EN558
Flanged Dimenson：	ASME B16.5
Butt Weld Dimensin：	ASME B16.25
Threaded end Dimension：	ASME B1.20.1
Socketweld dimension：	ASME B1.20.1
Test and Inspection：	API 598
