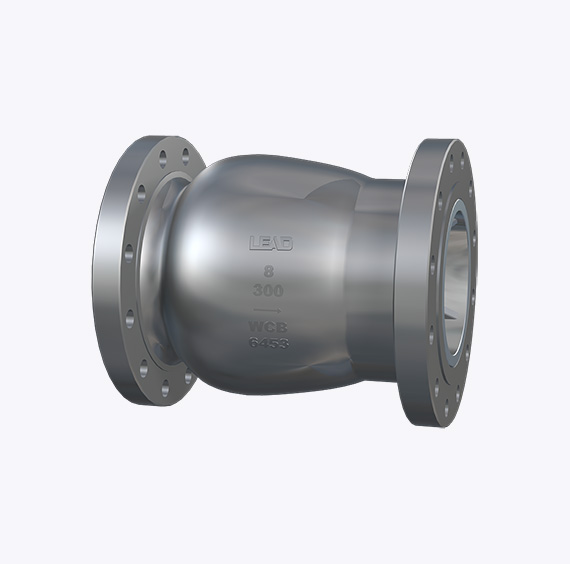

The Axial Flow Check Valve is a specialized type of non-return valve designed to allow fluid flow in one direction while preventing backflow. Unlike traditional check valves, the axial flow design features a streamlined construction that minimizes pressure drop and turbulence, making it particularly effective in high-flow applications. These valves are widely used in various industries, including water treatment, HVAC, power generation, and chemical processing.

Features:

• Streamlined Design: The axial flow design ensures a smooth flow path, reducing turbulence and pressure loss, which enhances overall system efficiency.
• High Flow Capacity: Capable of handling large volumes of fluid, making it suitable for applications where high flow rates are required.
• Lightweight Construction: Typically made from materials such as stainless steel, PVC, or other lightweight alloys, facilitating easier installation and maintenance.
• Automatic Operation: The valve automatically opens and closes in response to changes in fluid flow, providing reliable backflow prevention without manual intervention.
• Versatile Applications: Suitable for a wide range of media, including liquids, gases, and slurries, making them adaptable for numerous industrial applications.

Product Specifications

• Standard Compliance: Manufactured according to relevant industry standards such as API, ANSI, or ISO
• Nominal Pressure: Typically available in pressure ratings such as PN10, PN16, or higher
• Nominal Diameter: Ranges from DN50 to DN600 (or larger, depending on the application)
• Body Material: Options include stainless steel, ductile iron, PVC, or other corrosion-resistant materials
• Sealing Material: Common sealing materials include EPDM, NBR, or PTFE, depending on the application and media
• Connection Type: Designed for flanged or threaded connections, compatible with ANSI, DIN, or JIS standards
• Operating Temperature: Varies based on material; typically ranges from -10°C to +120°C (14°F to 248°F) for rubber-sealed valves, and higher for metal-sealed valves
