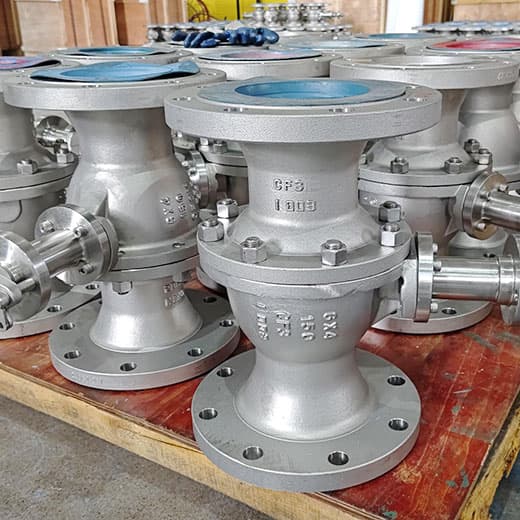

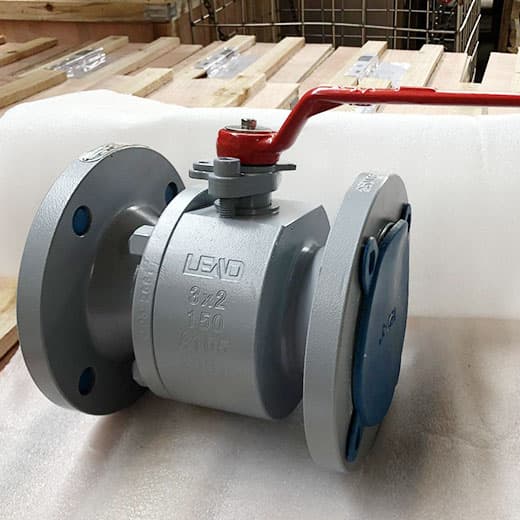

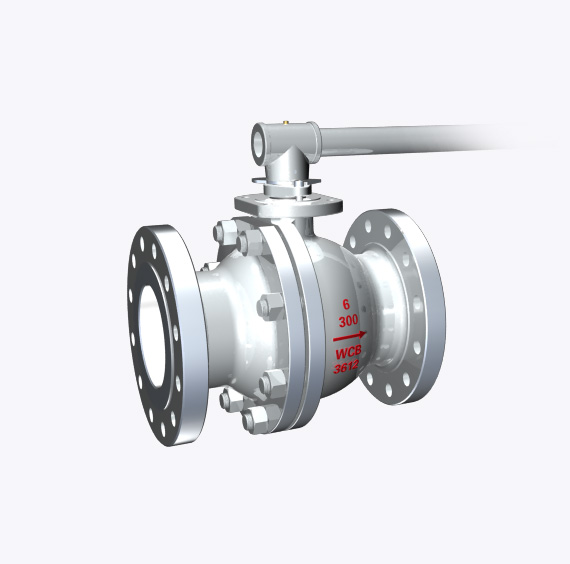

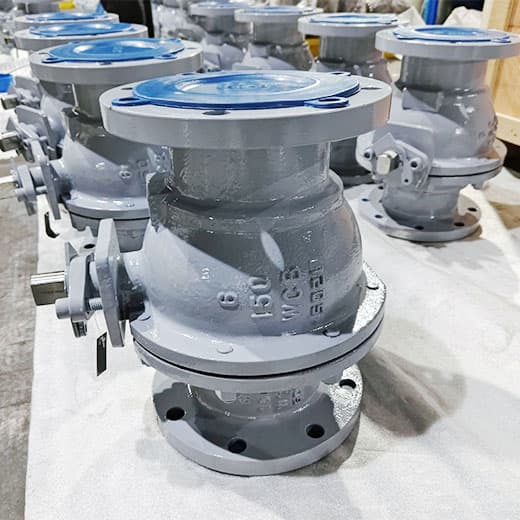

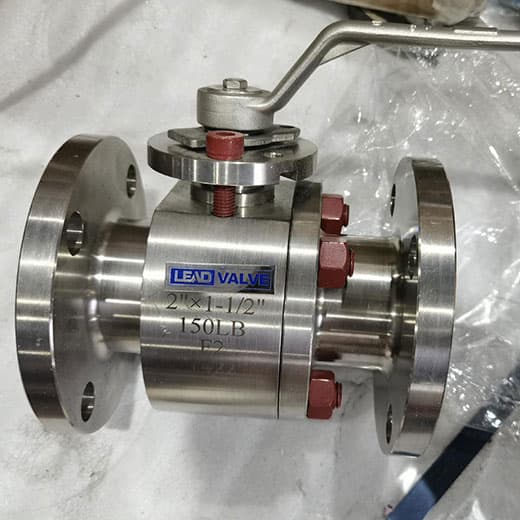

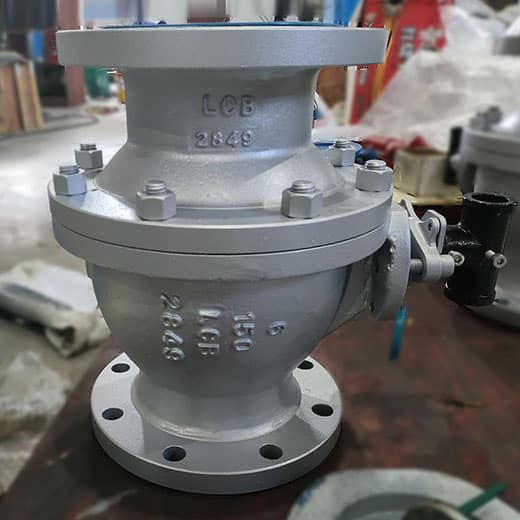

The series Two-Piece,floating ball valve 1/2"-8" ANSI Class 150-600,1/2"-2" ANSI Class 900-1500,1/2"-1" ANSI Class 2500 in full and reduced port

Design Features:

• standard floating ball valves are manufactured in two pieces bolted body,ball valves could be supplied full or reduced bore,designed for maximum rigidity against pipeline thrust,made from forged components or barstock.
• Bolted body constructions allow easy service and maintenance opration on site,Pressure rating is from class ANSI 150 up to ANSI 2500 Lbs.
• Valves are usually supplied with lever operator,with gear box or bare stem on customer request.All standard floating ball valves have below features:
• Lock device:valve is equipped with an integral locking device.
• Blow-out proof stem:the stem is made separately from the ball with integral T-type round shoulder,which ensures total safety and integrity.
• Anti-Static Design:grounding device are supplied form positive anti-static between ball/stem and body.
• ISO 5211 mount plate:simplifies the installlation of actuators with standard connections.
• Emission-firee gasket:the primary gaskey is emission free graphite to eliminate leakage.

Fire Safe Design:

• ball valve have acquired API 607 certification,Fire safe is standard desing on all Ball valves,
• When fire burned out the primary O-ring and seat insetr,the secondary seat fire-safe packing graphite seal,and seat ring & ball metal to metal contact preloaded by spring will minimize the internal process medium leakage.

Standard:

• Design & Manufacturing Standard：API 6D，ASME B16.34，API 608，BS 5351
• Face to face：ASME B16.10，API 6D，DIN 3202，BSEN 558
• Flange Connection Size：ASME B16.5，BSEN 1092
• Testing and inspection: API598,API6D
